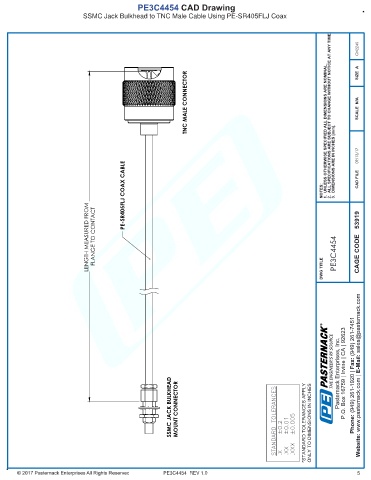

PE3C4454 CAD Drawing
SSMC Jack Bulkhead to TNC Male Cable Using PE-SR405FLJ Coax

CN2245 SIZE A

TNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

PE-SR405FLJ COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 09/13/17 CAD FILE

LENGTH MEASURED FROM FLANGE TO CONTACT DWG TITLE PE3C4454 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

SSMC JACK BULKHEAD MOUNT CONNECTOR STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4454 REV 1.0 5
