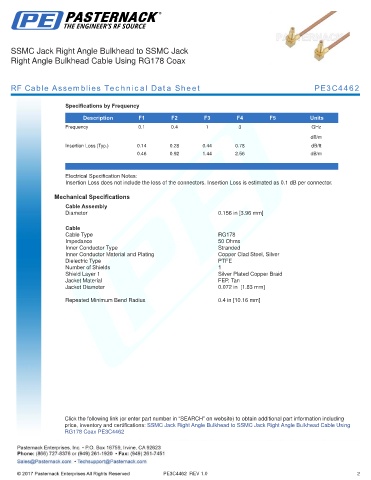

SSMC Jack Right Angle Bulkhead to SSMC Jack
Right Angle Bulkhead Cable Using RG178 Coax

RF Cable Assemblies Technical Data Sheet PE3C4462

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.4 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.14 0.28 0.44 0.78 dB/ft
0.46 0.92 1.44 2.56 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.156 in [3.96 mm]
.
Cable
Cable Type RG178
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.072 in [1.83 mm]
.
Repeated Minimum Bend Radius 0.4 in [10.16 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: SSMC Jack Right Angle Bulkhead to SSMC Jack Right Angle Bulkhead Cable Using
RG178 Coax PE3C4462

PE3C4462 REV 1.0 2
