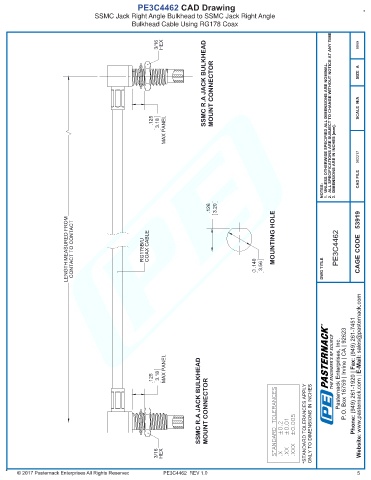

PE3C4462 CAD Drawing
SSMC Jack Right Angle Bulkhead to SSMC Jack Right Angle
Bulkhead Cable Using RG178 Coax
SSMC R.A JACK BULKHEAD MOUNT CONNECTOR SIZE A
3/16 HEX 9999
MAX PANEL UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.125 3.18 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
DIMENSIONS ARE IN INCHES [mm]. 082217
NOTES: 1. 2. 3. CAD FILE
.126 3.20
LENGTH MEASURED FROM CONTACT TO CONTACT RG178B/U COAX CABLE .140 3.56 MOUNTING HOLE DWG TITLE PE3C4462 CAGE CODE 53919
R
MAX PANEL THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623
SSMC R.A JACK BULKHEAD MOUNT CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.125 3.18 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
3/16 HEX .X ±0.2 .XX ±0.01 .XXX ±0.005
PE3C4462 REV 1.0 5
