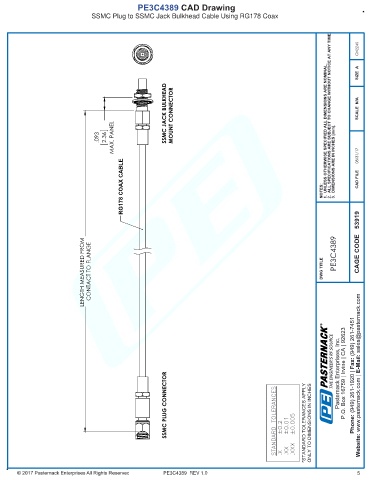

PE3C4389 CAD Drawing
SSMC Plug to SSMC Jack Bulkhead Cable Using RG178 Coax

CN2245

SIZE A

SSMC JACK BULKHEAD MOUNT CONNECTOR ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

.093 2.36 MAX. PANEL UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. DIMENSIONS ARE IN INCHES [mm]. 08/31/17

RG178 COAX CABLE NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO FLANGE DWG TITLE PE3C4389 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

SSMC PLUG CONNECTOR STANDARD TOLERANCES .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4389 REV 1.0 .X ±0.2 5
