Page 317 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets
P. 317

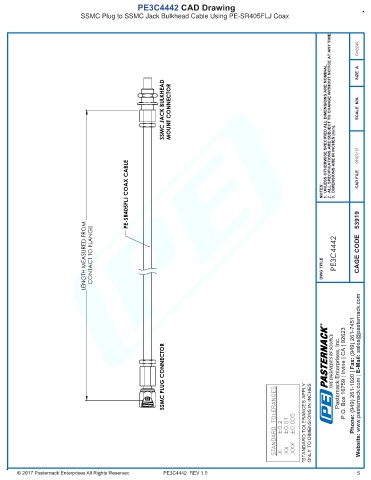

PE3C4442 CAD Drawing
SSMC Plug to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax
CN2245
SIZE A
SSMC JACK BULKHEAD MOUNT CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
PE-SR405FLJ COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 09/07/17 CAD FILE
LENGTH MEASURED FROM CONTACT TO FLANGE DWG TITLE PE3C4442 CAGE CODE 53919
R
SSMC PLUG CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4442 REV 1.0 5
