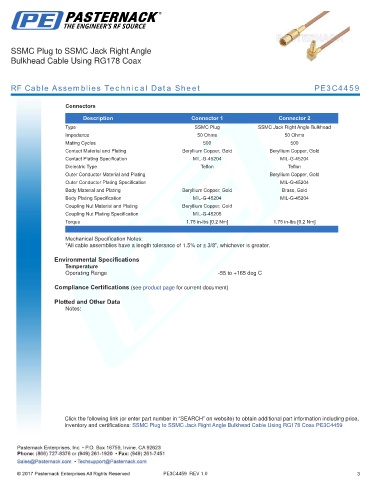

SSMC Plug to SSMC Jack Right Angle
Bulkhead Cable Using RG178 Coax

RF Cable Assemblies Technical Data Sheet PE3C4459

Connectors

Description Connector 1 Connector 2
Type SSMC Plug SSMC Jack Right Angle Bulkhead
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Beryllium Copper, Gold Brass, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
Coupling Nut Material and Plating Beryllium Copper, Gold
Coupling Nut Plating Specification MIL-G-45205
Torque 1.75 in-lbs [0.2 Nm] 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax PE3C4459

PE3C4459 REV 1.0 3
