Page 322 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

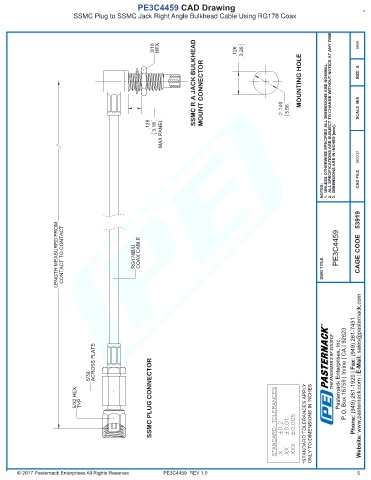

PE3C4459 CAD Drawing
SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

SSMC R.A JACK BULKHEAD MOUNT CONNECTOR MOUNTING HOLE SIZE A
3/16 HEX .126 3.20 9999

.125 3.18 .140 3.56 UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
MAX PANEL
DIMENSIONS ARE IN INCHES [mm]. 082217

NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT RG178B/U COAX CABLE DWG TITLE PE3C4459 CAGE CODE 53919

R

ACROSS FLATS THE ENGINEER'S RF SOURCE

5/32 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

5/32 HEX TYP SSMC PLUG CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4459 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
