Page 327 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

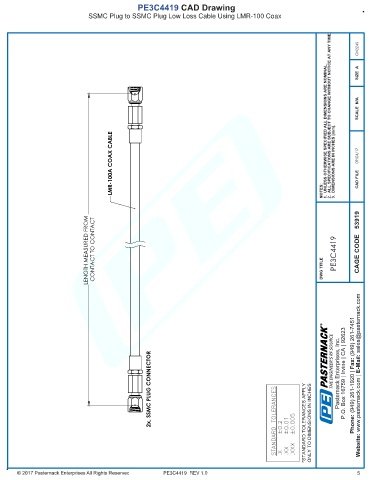

PE3C4419 CAD Drawing
SSMC Plug to SSMC Plug Low Loss Cable Using LMR-100 Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

LMR-100A COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 09/04/17 CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4419 CAGE CODE 53919

R

2x, SSMC PLUG CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

PE3C4419 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
