Page 332 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

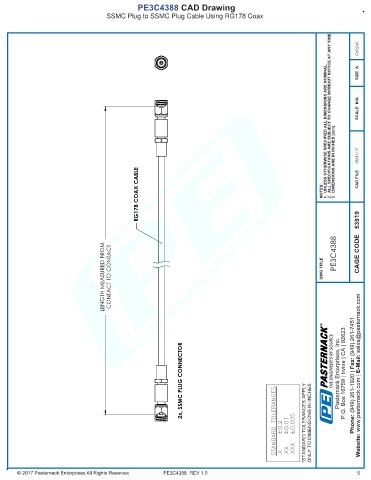

PE3C4388 CAD Drawing
SSMC Plug to SSMC Plug Cable Using RG178 Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

DIMENSIONS ARE IN INCHES [mm]. 08/31/17

RG178 COAX CABLE NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4388 CAGE CODE 53919

R

2x, SSMC PLUG CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4388 REV 1.0 5
