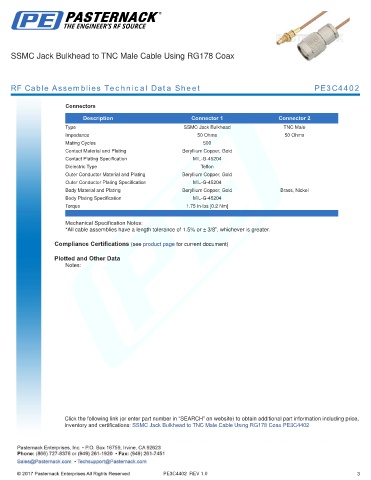

SSMC Jack Bulkhead to TNC Male Cable Using RG178 Coax

RF Cable Assemblies Technical Data Sheet PE3C4402

Connectors

Description Connector 1 Connector 2
Type SSMC Jack Bulkhead TNC Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204
Dielectric Type Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Beryllium Copper, Gold Brass, Nickel
Body Plating Specification MIL-G-45204
Torque 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Jack Bulkhead to TNC Male Cable Using RG178 Coax PE3C4402

PE3C4402 REV 1.0 3
