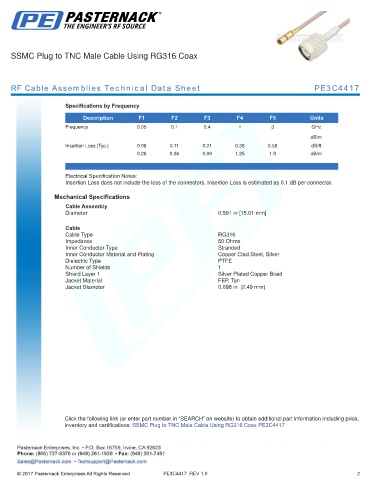

SSMC Plug to TNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4417

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.05 0.1 0.4 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.08 0.11 0.21 0.38 0.58 dB/ft
0.26 0.36 0.69 1.25 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.591 in [15.01 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug to TNC Male Cable Using RG316 Coax PE3C4417

PE3C4417 REV 1.0 2
