Page 377 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

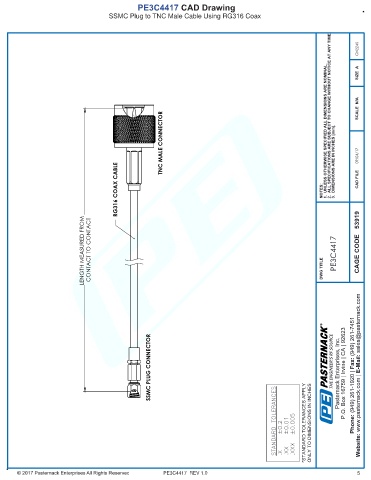

PE3C4417 CAD Drawing
SSMC Plug to TNC Male Cable Using RG316 Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

SIZE A

SCALE N/A

TNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. DIMENSIONS ARE IN INCHES [mm]. 09/04/17

RG316 COAX CABLE NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4417 CAGE CODE 53919

R
SSMC PLUG CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4417 REV 1.0 5
