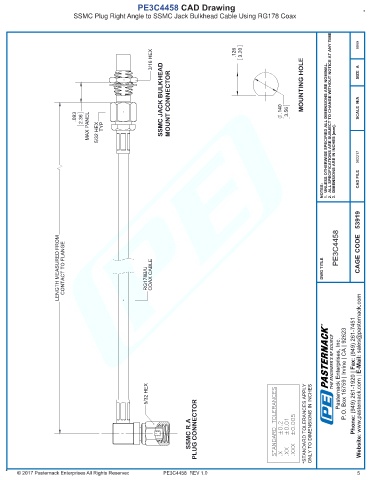

PE3C4458 CAD Drawing
SSMC Plug Right Angle to SSMC Jack Bulkhead Cable Using RG178 Coax

9999
3/16 HEX .126 3.20 SIZE A

SSMC JACK BULKHEAD MOUNT CONNECTOR MOUNTING HOLE

.093 2.36 .140 3.56 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
MAX PANEL 5/32 HEX TYP UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
DIMENSIONS ARE IN INCHES [mm]. 082217

NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO FLANGE RG178B/U COAX CABLE DWG TITLE PE3C4458 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

5/32 HEX

SSMC R.A PLUG CONNECTOR STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4458 REV 1.0 5
