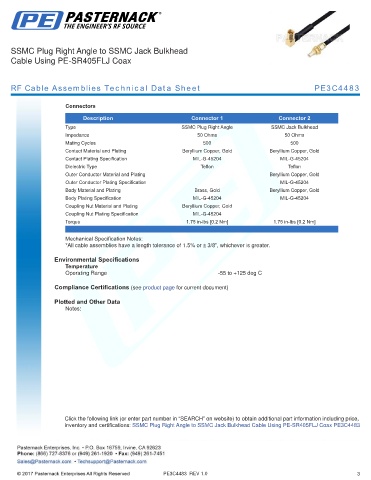

SSMC Plug Right Angle to SSMC Jack Bulkhead
Cable Using PE-SR405FLJ Coax
RF Cable Assemblies Technical Data Sheet PE3C4483
Connectors
Description Connector 1 Connector 2
Type SSMC Plug Right Angle SSMC Jack Bulkhead
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold Beryllium Copper, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
Coupling Nut Material and Plating Beryllium Copper, Gold
Coupling Nut Plating Specification MIL-G-45204
Torque 1.75 in-lbs [0.2 Nm] 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug Right Angle to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax PE3C4483
PE3C4483 REV 1.0 3
