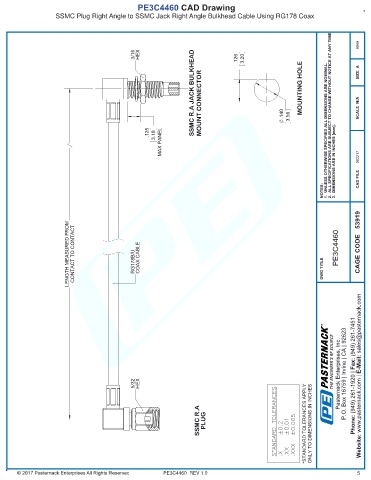

PE3C4460 CAD Drawing
SSMC Plug Right Angle to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

9999
SSMC R.A JACK BULKHEAD MOUNT CONNECTOR MOUNTING HOLE ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
3/16 HEX .126 3.20 SIZE A

MAX PANEL DIMENSIONS ARE IN INCHES [mm]. 082217
.125 3.18 .140 3.56 UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT RG178B/U COAX CABLE DWG TITLE PE3C4460 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE

5/32 HEX Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

SSMC R.A PLUG

PE3C4460 REV 1.0 5
