SSMC Plug Right Angle to SSMC Plug Right Angle
Low Loss Cable Using LMR-100 Coax

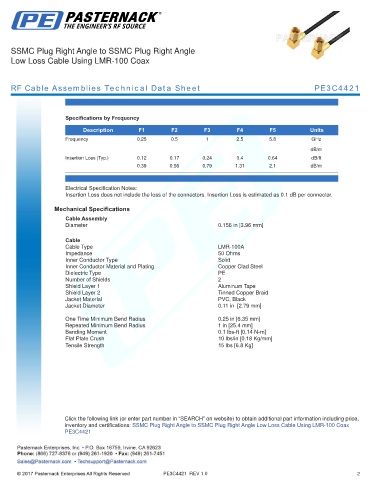

RF Cable Assemblies Technical Data Sheet PE3C4421

.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 5.8 GHz
dB/m
Insertion Loss (Typ.) 0.12 0.17 0.24 0.4 0.64 dB/ft
0.39 0.56 0.79 1.31 2.1 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.156 in [3.96 mm]
.
Cable
Cable Type LMR-100A
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.11 in [2.79 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs-ft [0.14 N-m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug Right Angle to SSMC Plug Right Angle Low Loss Cable Using LMR-100 Coax
PE3C4421
