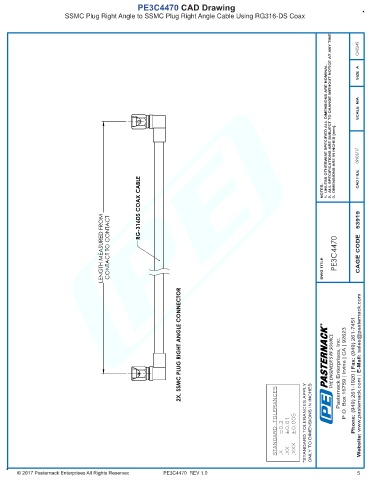

PE3C4470 CAD Drawing
SSMC Plug Right Angle to SSMC Plug Right Angle Cable Using RG316-DS Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

DIMENSIONS ARE IN INCHES [mm]. 09/05/17 CAD FILE

RG-316DS COAX CABLE NOTES: 1. 2. 3.

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4470 CAGE CODE 53919

2X, SSMC PLUG RIGHT ANGLE CONNECTOR

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4470 REV 1.0 5
