SSMC Plug Right Angle to SSMC Plug Right Angle
Cable Using PE-SR405FLJ Coax

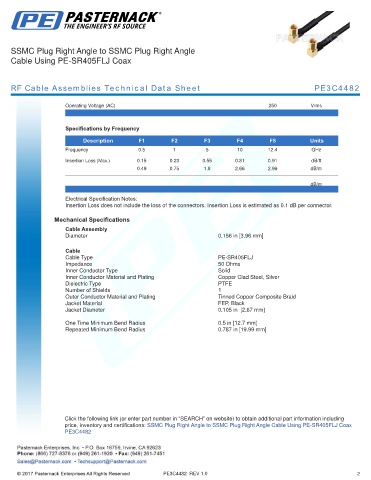

RF Cable Assemblies Technical Data Sheet PE3C4482

Operating Voltage (AC) 250 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 5 10 12.4 GHz
Insertion Loss (Max.) 0.15 0.23 0.55 0.81 0.91 dB/ft
0.49 0.75 1.8 2.66 2.99 dB/m

dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.156 in [3.96 mm]
.
Cable
Cable Type PE-SR405FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Tinned Copper Composite Braid
Jacket Material FEP, Black
Jacket Diameter 0.105 in [2.67 mm]
.
One Time Minimum Bend Radius 0.5 in [12.7 mm]
Repeated Minimum Bend Radius 0.787 in [19.99 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: SSMC Plug Right Angle to SSMC Plug Right Angle Cable Using PE-SR405FLJ Coax
PE3C4482
