SSMC Plug Right Angle to TNC Male Low
Loss Cable Using LMR-100 Coax

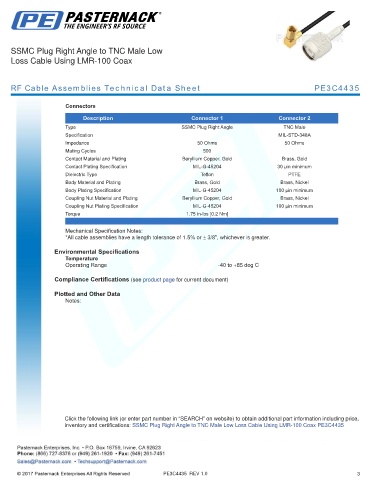

RF Cable Assemblies Technical Data Sheet PE3C4435

Connectors

Description Connector 1 Connector 2
Type SSMC Plug Right Angle TNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification MIL-G-45204 30 µin minimum
Dielectric Type Teflon PTFE
Body Material and Plating Brass, Gold Brass, Nickel
Body Plating Specification MIL-G-45204 100 µin minimum
Coupling Nut Material and Plating Beryllium Copper, Gold Brass, Nickel
Coupling Nut Plating Specification MIL-G-45204 100 µin minimum
Torque 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax PE3C4435

PE3C4435 REV 1.0 3
