Page 427 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

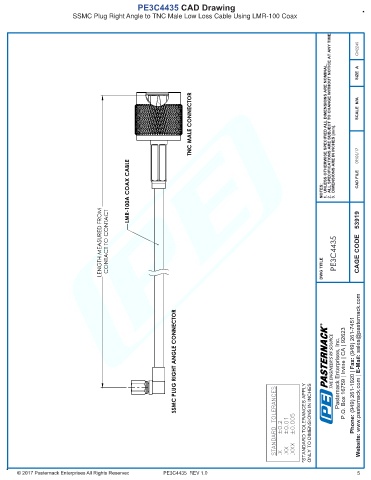

PE3C4435 CAD Drawing
SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax

CN2245

SIZE A

TNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A 09/05/17

LMR-100A COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4435 CAGE CODE 53919

SSMC PLUG RIGHT ANGLE CONNECTOR R THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4435 REV 1.0 5
