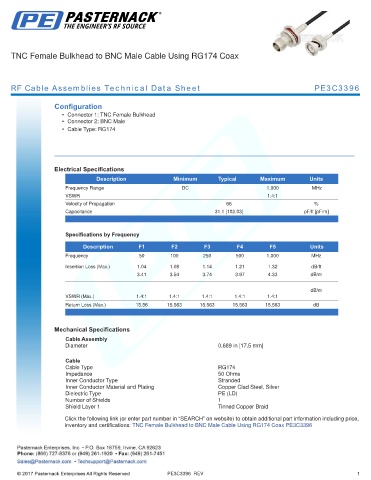

TNC Female Bulkhead to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C3396

Configuration
• Connector 1: TNC Female Bulkhead
• Connector 2: BNC Male
• Cable Type: RG174

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.04 1.08 1.14 1.21 1.32 dB/ft
3.41 3.54 3.74 3.97 4.33 dB/m

dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.689 in [17.5 mm]
.
Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PE (LD)
Number of Shields 1
Shield Layer 1 Tinned Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead to BNC Male Cable Using RG174 Coax PE3C3396

PE3C3396 REV 1
