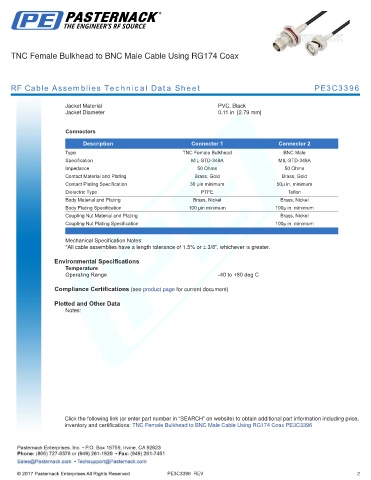

TNC Female Bulkhead to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C3396

Jacket Material PVC, Black
Jacket Diameter 0.11 in [2.79 mm]
.
Connectors

Description Connector 1 Connector 2
Type TNC Female Bulkhead BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 50µ in. minimum
Dielectric Type PTFE Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead to BNC Male Cable Using RG174 Coax PE3C3396

PE3C3396 REV 2
