Temperature Conditioned TNC Female Bulkhead to TNC
Female Bulkhead Low Loss Cable Using PE-P160LL Coax

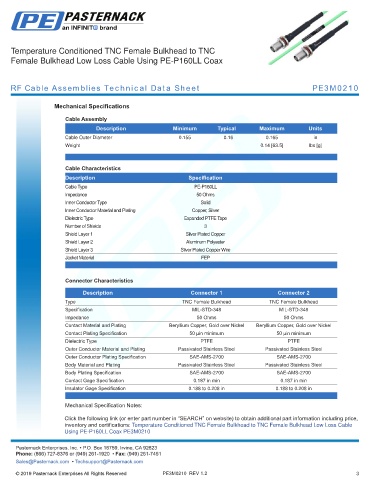

RF Cable Assemblies Technical Data Sheet PE3M0210
Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Cable Outer Diameter 0.155 0.16 0.165 in
Weight 0.14 [63.5] lbs [g]
.
Cable Characteristics
Description Specification
Cable Type PE-P160LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type Expanded PTFE Tape
Number of Shields 3
Shield Layer 1 Silver Plated Copper
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP
.
Connector Characteristics
Description Connector 1 Connector 2
Type TNC Female Bulkhead TNC Female Bulkhead
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold over Nickel Beryllium Copper, Gold over Nickel
Contact Plating Specification 50 µin minimum 50 µin minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2700 SAE-AMS-2700
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700 SAE-AMS-2700
Contact Gage Specification 0.187 in min 0.187 in min
Insulator Gage Specification 0.188 to 0.208 in 0.188 to 0.208 in
.
Mechanical Specification Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Female Bulkhead to TNC Female Bulkhead Low Loss Cable
Using PE-P160LL Coax PE3M0210 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
