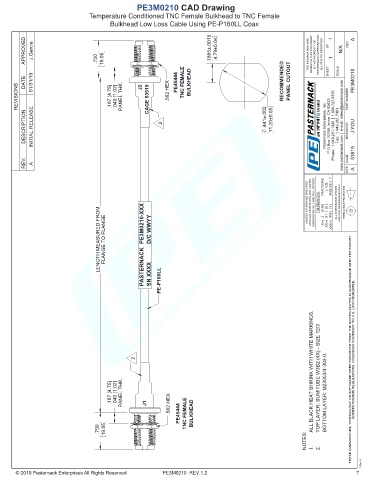

PE3M0210 CAD Drawing
Temperature Conditioned TNC Female Bulkhead to TNC Female
Bulkhead Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia .750 19.05 .1885±.0015 4.79±0.04 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 N/A REV A

SCALE
DATE 01/31/19 J2 PE45444 TNC FEMALE BULKHEAD RECOMMENDED PANEL CUTOUT PE3M0210
REVISIONS .187 [4.75] .040 [1.02] PANEL THK. CAGE 53919 .562 HEX PART NUMBER

DESCRIPTION INITIAL RELEASE 2 .441±.002 11.20±0.05 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO FLANGE PE3M0210-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL .X=± .XX=± .XXX=±

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.187 [4.75] .040 [1.02] PANEL THK. J1 .562 HEX TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

PE45444 TNC FEMALE BULKHEAD
.750 19.05 Pasternack does not make -
NOTES: 1. 2.
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
