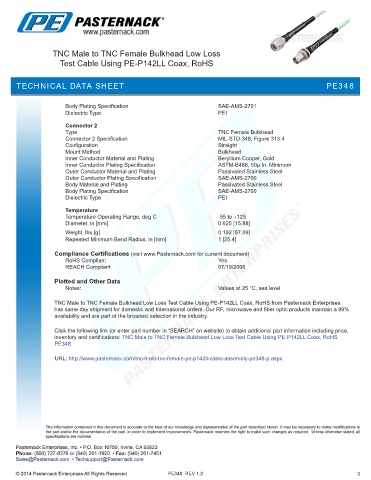

TNC Male to TNC Female Bulkhead Low Loss
Test Cable Using PE-P142LL Coax, RoHS

TECHNICAL D PE348
TECHNICAL DATA SHEETATA SHEET

Body Plating Specification SAE-AMS-2701
Dielectric Type PEI

Connector 2
Type TNC Female Bulkhead
Connector 2 Specification MIL-STD-348, Figure 313-4
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM-B488, 50µ In. Minimum
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2700
Body Material and Plating Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700
Dielectric Type PEI

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.625 [15.88]
.
Weight, lbs [g] 0.192 [87.09]
Repeated Minimum Bend Radius, in [mm] 1 [25.4]

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 07/19/2006

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Male to TNC Female Bulkhead Low Loss Test Cable Using PE-P142LL Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Female Bulkhead Low Loss Test Cable Using PE-P142LL Coax, RoHS
PE348

URL: http://www.pasternack.com/tnc-male-tnc-female-pe-p142ll-cable-assembly-pe348-p.aspx
