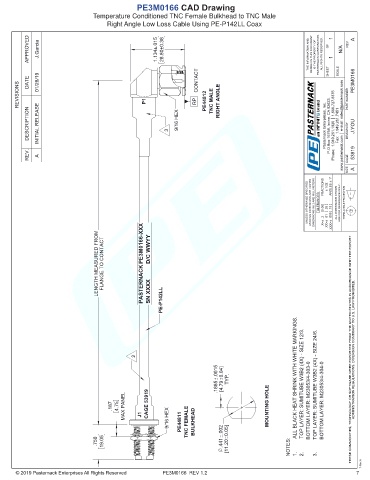

PE3M0166 CAD Drawing
Temperature Conditioned TNC Female Bulkhead to TNC Male
Right Angle Low Loss Cable Using PE-P142LL Coax

1 A
APPROVED J.Garcia 1.134±.015 28.80±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. N/A REV

SHEET OF 1 SCALE

REVISIONS DATE 01/28/19 P1 RP CONTACT PE44812 TNC MALE RIGHT ANGLE PART NUMBER PE3M0166

DESCRIPTION INITIAL RELEASE 3 9/16 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO CONTACT PASTERNACK PE3M0166-XXX D/C WWYY SN XXXX PE-P142LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.0015 0.04] ALL BLACK HEAT SHRINK WITH WHITE MARKINGS.

.1885 [4.79 TYP. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. 3. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

MAX PANEL J1 9/16 HEX BOTTOM LAYER: M23053/4-303-0 BOTTOM LAYER: M23053/4-304-0
.187 4.75 CAGE 53919 MOUNTING HOLE

PE44811 TNC FEMALE BULKHEAD .002 0.05] Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.750 19.05 .441
[11.20 NOTES: 1. 2.
T-Rev.A
PE3M0166 REV 1.2 7
