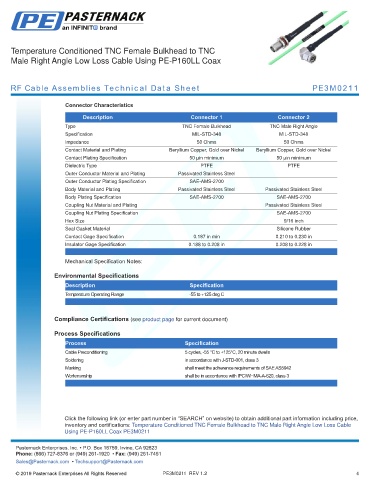

Temperature Conditioned TNC Female Bulkhead to TNC
Male Right Angle Low Loss Cable Using PE-P160LL Coax
RF Cable Assemblies Technical Data Sheet PE3M0211
Connector Characteristics
Description Connector 1 Connector 2
Type TNC Female Bulkhead TNC Male Right Angle
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold over Nickel Beryllium Copper, Gold over Nickel
Contact Plating Specification 50 µin minimum 50 µin minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2700
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700 SAE-AMS-2700
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2700
Hex Size 9/16 inch
Seal Gasket Material Silicone Rubber
Contact Gage Specification 0.187 in min 0.210 to 0.230 in
Insulator Gage Specification 0.188 to 0.208 in 0.208 to 0.228 in
.
Mechanical Specification Notes:
Environmental Specifications
Description Specification
Temperature Operating Range -55 to +125 deg C
.
Compliance Certifications (see product page for current document)
Process Specifications
Process Specification
Cable Preconditioning 5 cycles, -55 °C to +125°C, 20 minute dwells
Soldering in accordance with J-STD-001, class 3
Marking shall meet the adherence requirements of SAE AS5942
Workmanship shall be in accordance with IPC/WHMA-A-620, class 3
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Female Bulkhead to TNC Male Right Angle Low Loss Cable
Using PE-P160LL Coax PE3M0211 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0211 REV 1.2 4
