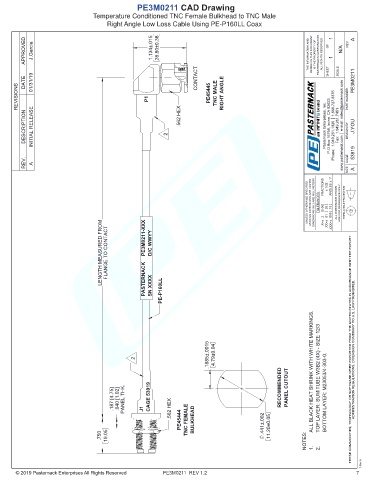

PE3M0211 CAD Drawing
Temperature Conditioned TNC Female Bulkhead to TNC Male
Right Angle Low Loss Cable Using PE-P160LL Coax
1 A
APPROVED J.Garcia 1.134±.015 28.80±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 N/A REV

DATE 01/31/19 CONTACT SCALE PE3M0211
REVISIONS P1 PE45445 TNC MALE RIGHT ANGLE PART NUMBER

DESCRIPTION INITIAL RELEASE 2 .562 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO CONTACT PE3M0211-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL

.1885±.0015 4.79±0.04 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS.

.187 [4.75] .040 [1.02] PANEL THK. J1 CAGE 53919 .562 HEX RECOMMENDED PANEL CUTOUT TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

PE45444 TNC FEMALE BULKHEAD .441±.002 11.20±0.05 -
19.05
Pasternack does not make
.750
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES: 1. 2.
T-Rev.A
PE3M0211 REV 1.2 7
