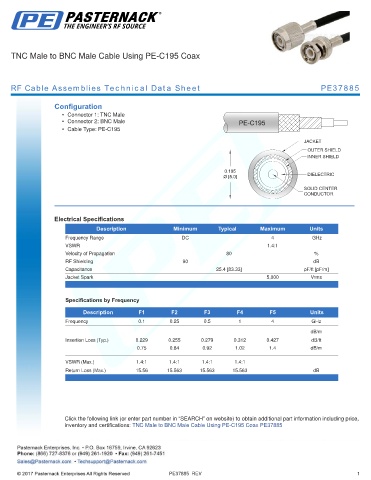

TNC Male to BNC Male Cable Using PE-C195 Coax

RF Cable Assemblies Technical Data Sheet PE37885

Configuration
• Connector 1: TNC Male
• Connector 2: BNC Male
• Cable Type: PE-C195

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Velocity of Propagation 80 %
RF Shielding 90 dB
Capacitance 25.4 [83.33] pF/ft [pF/m]
Jacket Spark 5,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 4 GHz
dB/m
Insertion Loss (Typ.) 0.229 0.255 0.279 0.312 0.427 dB/ft
0.75 0.84 0.92 1.02 1.4 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to BNC Male Cable Using PE-C195 Coax PE37885

PE37885 REV 1
