Page 638 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets

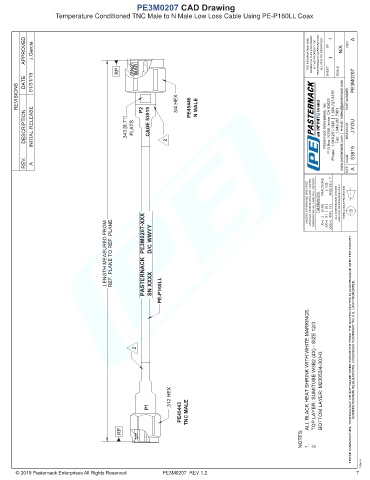

PE3M0207 CAD Drawing
Temperature Conditioned TNC Male to N Male Low Loss Cable Using PE-P160LL Coax

APPROVED J.Garcia THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 N/A REV A

RP SCALE
DATE 01/31/19 PE3M0207
REVISIONS P2 3/4 HEX PE45446 N MALE PART NUMBER

DESCRIPTION INITIAL RELEASE .343 [8.71] FLATS CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM REF. PLANE TO REF. PLANE PE3M0207-XXX PASTERNACK D/C WWYY SN XXXX PE-P160LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.312 HEX TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3 BOTTOM LAYER: M23053/4-303-0.

PE45443 TNC MALE
P1

RP Pasternack does not make -
NOTES: 1. 2.
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE3M0207 REV 1.2 7
