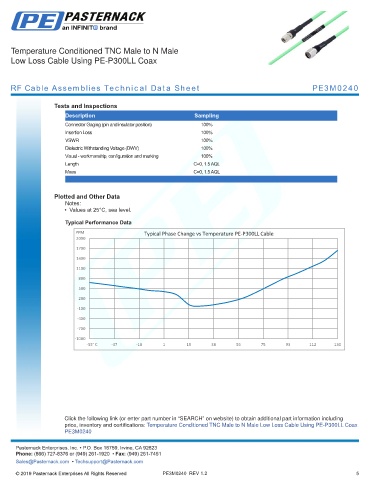

Temperature Conditioned TNC Male to N Male
Low Loss Cable Using PE-P300LL Coax

RF Cable Assemblies Technical Data Sheet PE3M0240

Tests and Inspections
Description Sampling
Connector Gaging (pin and insulator position) 100%
Insertion Loss 100%
VSWR 100%
Dielectric Withstanding Voltage (DWV) 100%
Visual - workmanship, configuration and marking 100%
Length C=0, 1.5 AQL
Mass C=0, 1.5 AQL
.

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Typical Performance Data
PPM Typical Phase Change vs Temperature PE-P300LL Cable
2000

1700
1400
1100
800
500
200
-100
-400
-700
-1000
-55° C -37 -18 1 19 38 56 75 93 112 130

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Temperature Conditioned TNC Male to N Male Low Loss Cable Using PE-P300LL Coax
PE3M0240 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
