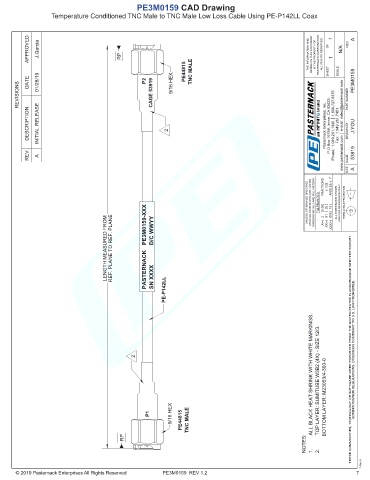

PE3M0159 CAD Drawing
Temperature Conditioned TNC Male to TNC Male Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia RP PE44815 TNC MALE THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1 1 SCALE N/A REV A

REVISIONS DATE 01/28/19 P2 CAGE 53919 9/16 HEX PART NUMBER PE3M0159

DESCRIPTION INITIAL RELEASE 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

PE3M0159-XXX
LENGTH MEASURED FROM REF. PLANE TO REF. PLANE D/C WWYY

PASTERNACK

SN XXXX
PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

P1 9/16 HEX PE44815 TNC MALE BOTTOM LAYER: M23053/4-303-0

Pasternack does not make
RP
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
NOTES: 1. 2.

T-Rev.A
PE3M0159 REV 1.2 7
