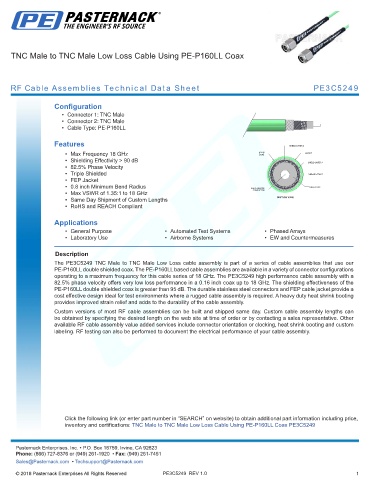

TNC Male to TNC Male Low Loss Cable Using PE-P160LL Coax

RF Cable Assemblies Technical Data Sheet PE3C5249

Configuration
• Connector 1: TNC Male
• Connector 2: TNC Male
• Cable Type: PE-P160LL

Features SHIELD LAYER 2
• Max Frequency 18 GHz 3.05 .120 JACKET
• Shielding Effectivity > 90 dB SHIELD LAYER 3
• 82.5% Phase Velocity
• Triple Shielded SHIELD LAYER 1
• FEP Jacket
• 0.8 inch Minimum Bend Radius SOLID CENTER DIELECTRIC
• Max VSWR of 1.35:1 to 18 GHz CONDUCTOR
• Same Day Shipment of Custom Lengths SECTION VIEW
• RoHS and REACH Compliant

Applications
• General Purpose • Automated Test Systems • Phased Arrays
• Laboratory Use • Airborne Systems • EW and Countermeasures
.
Description
The PE3C5249 TNC Male to TNC Male Low Loss cable assembly is part of a series of cable assemblies that use our
PE-P160LL double shielded coax. The PE-P160LL based cable assemblies are available in a variety of connector configurations
operating to a maximum frequency for this cable series of 18 GHz. The PE3C5249 high performance cable assembly with a
82.5% phase velocity offers very low loss performance in a 0.16 inch coax up to 18 GHz. The shielding effectiveness of the
PE-P160LL double shielded coax is greater than 95 dB. The durable stainless steel connectors and FEP cable jacket provide a
cost effective design ideal for test environments where a rugged cable assembly is required. A heavy duty heat shrink booting
provides improved strain relief and adds to the durability of the cable assembly.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can
be obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other
available RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom
labeling. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Low Loss Cable Using PE-P160LL Coax PE3C5249
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5249 REV 1.0 1
