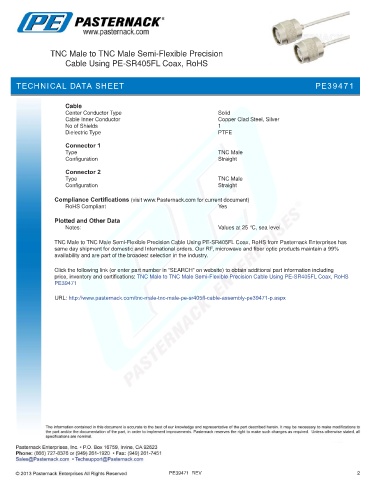

TNC Male to TNC Male Semi-Flexible Precision
Cable Using PE-SR405FL Coax, RoHS

TECHNICAL D PE39471
TECHNICAL DATA SHEETATA SHEET

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE

Connector 1
Type TNC Male
Configuration Straight

Connector 2
Type TNC Male
Configuration Straight
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Male to TNC Male Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male to TNC Male Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS
PE39471

URL: http://www.pasternack.com/tnc-male-tnc-male-pe-sr405fl-cable-assembly-pe39471-p.aspx

PE39471 REV 2
