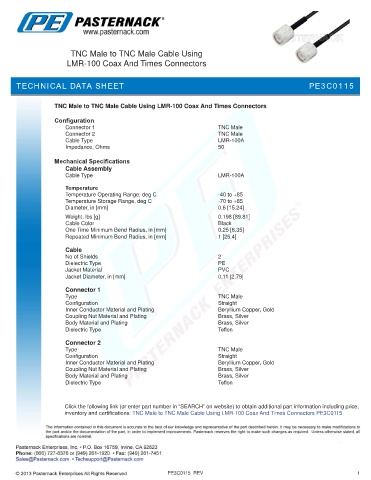

TNC Male to TNC Male Cable Using LMR-100 Coax And Times Connectors

Configuration
Connector 1 TNC Male
Connector 2 TNC Male
Cable Type LMR-100A
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-100A

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.6 [15.24]
.
Weight, lbs [g] 0.198 [89.81]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.25 [6.35]
Repeated Minimum Bend Radius, in [mm] 1 [25.4]

Cable
No of Shields 2
Dielectric Type PE
Jacket Material PVC
Jacket Diameter, in [mm] 0.11 [2.79]

Connector 1
Type TNC Male
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Brass, Silver
Body Material and Plating Brass, Silver
Dielectric Type Teflon

Connector 2
Type TNC Male
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Brass, Silver
Body Material and Plating Brass, Silver
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using LMR-100 Coax And Times Connectors PE3C0115
