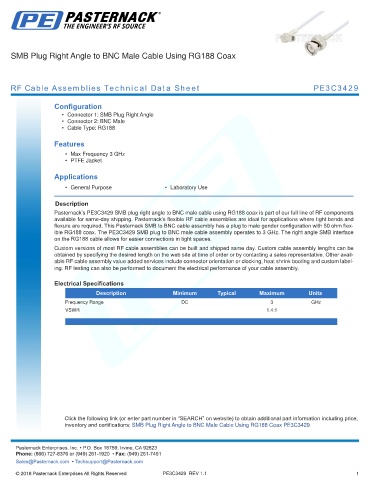

SMB Plug Right Angle to BNC Male Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3429

Configuration
• Connector 1: SMB Plug Right Angle
• Connector 2: BNC Male
• Cable Type: RG188

Features
• Max Frequency 3 GHz
• PTFE Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3429 SMB plug right angle to BNC male cable using RG188 coax is part of our full line of RF components
available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and
flexure are required. This Pasternack SMB to BNC cable assembly has a plug to male gender configuration with 50 ohm flex-
ible RG188 coax. The PE3C3429 SMB plug to BNC male cable assembly operates to 3 GHz. The right angle SMB interface
on the RG188 cable allows for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug Right Angle to BNC Male Cable Using RG188 Coax PE3C3429
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3429 REV 1.1 1
