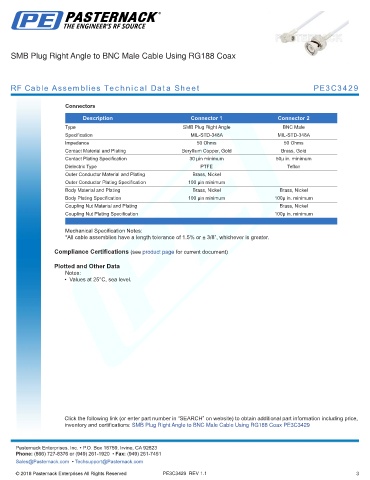

SMB Plug Right Angle to BNC Male Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3429

Connectors

Description Connector 1 Connector 2
Type SMB Plug Right Angle BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 50µ in. minimum
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Brass, Nickel
Outer Conductor Plating Specification 100 µin minimum
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug Right Angle to BNC Male Cable Using RG188 Coax PE3C3429
-
