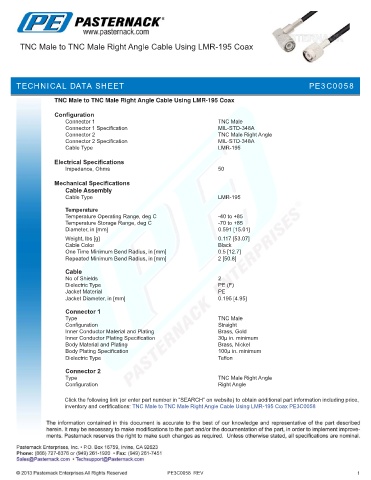

TNC Male to TNC Male Right Angle Cable Using LMR-195 Coax
TECHNICAL D PE3C0058
TECHNICAL DATA SHEETATA SHEET
TNC Male to TNC Male Right Angle Cable Using LMR-195 Coax
Configuration
Connector 1 TNC Male
Connector 1 Specification MIL-STD-348A
Connector 2 TNC Male Right Angle
Connector 2 Specification MIL-STD-348A
Cable Type LMR-195
Electrical Specifications
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-195
Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.591 [15.01]
.
Weight, lbs [g] 0.117 [53.07]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.5 [12.7]
Repeated Minimum Bend Radius, in [mm] 2 [50.8]
Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.195 [4.95]
Connector 1
Type TNC Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon
Connector 2
Type TNC Male Right Angle
Configuration Right Angle
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Right Angle Cable Using LMR-195 Coax PE3C0058
PE3C0058 REV 1
