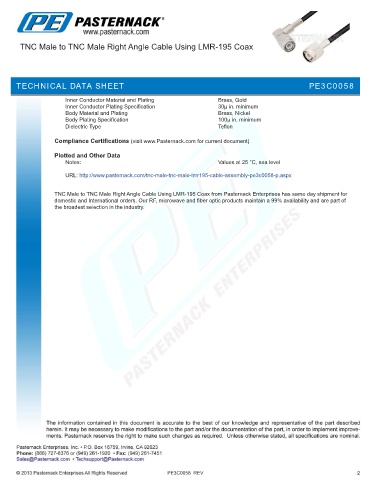

TNC Male to TNC Male Right Angle Cable Using LMR-195 Coax

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE3C0058

Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/tnc-male-tnc-male-lmr195-cable-assembly-pe3c0058-p.aspx

TNC Male to TNC Male Right Angle Cable Using LMR-195 Coax from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

PE3C0058 REV 2
