TNC Male to TNC Male Right Angle Cable
Using PE-141FLEX Coax, RoHS

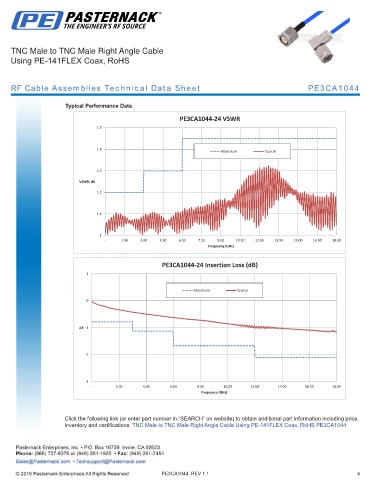

RF Cable Assemblies Technical Data Sheet PE3CA1044

Typical Performance Data

PE3CA1044-24 VSWR
1.5

1.4 Maximum Typical

1.3
VSWR, dB
1.2

1.1

1
- 1.50 3.00 4.50 6.00 7.50 9.00 10.50 12.00 13.50 15.00 16.50 18.00
Frequency (GHz)

PE3CA1044-24 Insertion Loss (dB)
1

Maximum Typical

0

dB -1

-2

-3
- 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS PE3CA1044

PE3CA1044 REV 1.1 4
