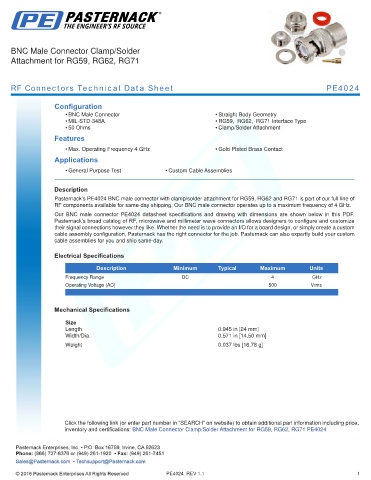

BNC Male Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4024

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348A • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4024 BNC male connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full line of
RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 4 GHz.
Our BNC male connector PE4024 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.945 in [24 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.037 lbs [16.78 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4024

PE4024 REV 1.1 1
