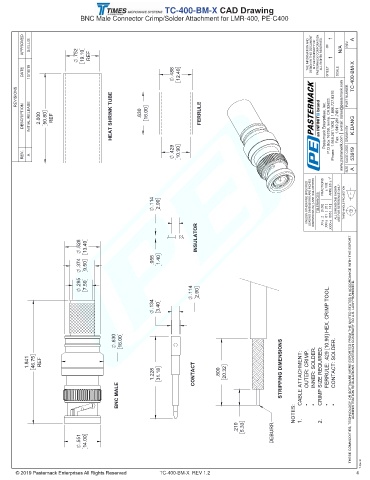

TC-400-BM-X CAD Drawing
BNC Male Connector Crimp/Solder Attachment for LMR-400, PE-C400

APPROVED S.ELLIS .752 19.10 REF THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 10/18/19 .488 12.40 SHEET OF SCALE TC-400-BM-X

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE 2.000 50.80 REF HEAT SHRINK TUBE .630 16.00 FERRULE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

.429 10.90 DRAWN BY CAGE CODE
REV. A SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .01 [ .25 ] .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.114 FRACTIONS ± 1/32 ANGLES ± 1°
2.90

INSULATOR .X=± .XX=± .XXX=±

.528 13.40

.374 9.50 .055 1.40

.295 7.50 .114 2.90

.134 3.40

.630 16.00 FERRULE: .429 [10.90] HEX. CRIMP TOOL. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

1.841 46.75 REF INNER: SOLDER. CONTACT: SOLDER.

1.228 31.18 CONTACT .800 20.32 STRIPPING DIMENSIONS CABLE ATTACHMENT: OUTER: CRIMP. CRIMP SIZE REQUIRED:

BNC MALE • • • •

NOTES:

1. 2.
DEBURR
.210 5.33 -
Pasternack does not make
.551 14.00

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
TC-400-BM-X REV 1.2 4
