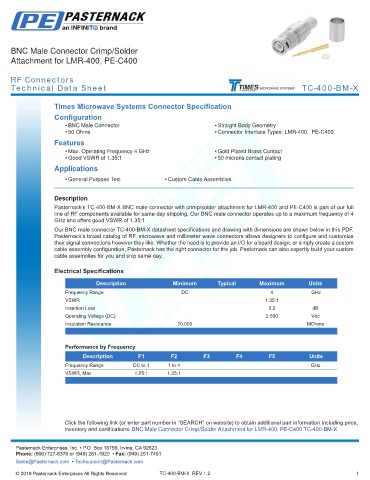

BNC Male Connector Crimp/Solder
Attachment for LMR-400, PE-C400

RF Connectors
Technical Data Sheet TC-400-BM-X

Times Microwave Systems Connector Specification
Configuration
• BNC Male Connector • Straight Body Geometry
• 50 Ohms • Connector Interface Types: LMR-400, PE-C400
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 50 microns contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s TC-400-BM-X BNC male connector with crimp/solder attachment for LMR-400 and PE-C400 is part of our full
line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 4
GHz and offers good VSWR of 1.35:1.
Our BNC male connector TC-400-BM-X datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.35:1
Insertion Loss 0.2 dB
Operating Voltage (DC) 2,500 Vdc
Insulation Resistance 10,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 4 GHz
VSWR, Max 1.25:1 1.35:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for LMR-400, PE-C400 TC-400-BM-X -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-400-BM-X REV 1.2 1
