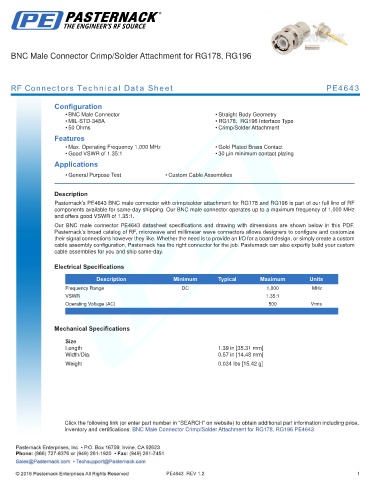

BNC Male Connector Crimp/Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4643

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348A • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4643 BNC male connector with crimp/solder attachment for RG178 and RG196 is part of our full line of RF
components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 1,000 MHz
and offers good VSWR of 1.35:1.
Our BNC male connector PE4643 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.39 in [35.31 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.034 lbs [15.42 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for RG178, RG196 PE4643

PE4643 REV 1.2 1
