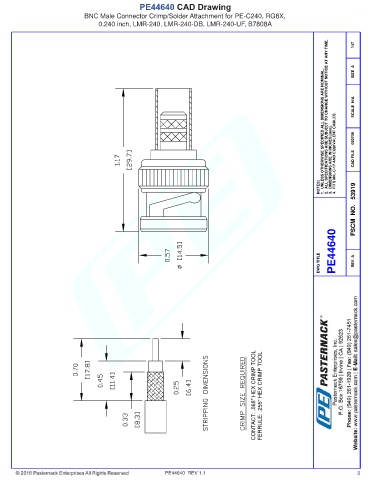

PE44640 CAD Drawing
BNC Male Connector Crimp/Solder Attachment for PE-C240, RG8X,
0.240 inch, LMR-240, LMR-240-DB, LMR-240-UF, B7808A
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 050709 CAD FILE
NOTES:
FSCM NO. 53919
PE44640
DWG TITLE REV. A
CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL
