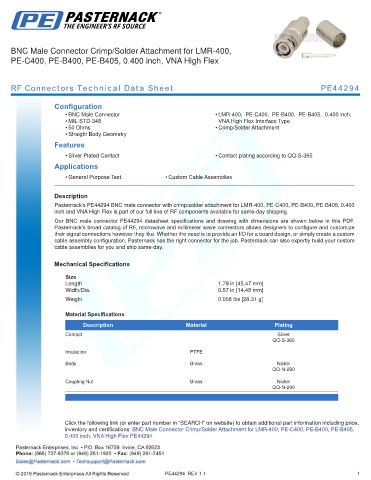

BNC Male Connector Crimp/Solder Attachment for LMR-400,
PE-C400, PE-B400, PE-B405, 0.400 inch, VNA High Flex

RF Connectors Technical Data Sheet PE44294

Configuration
• BNC Male Connector • LMR-400, PE-C400, PE-B400, PE-B405, 0.400 inch,
• MIL-STD-348 VNA High Flex Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44294 BNC male connector with crimp/solder attachment for LMR-400, PE-C400, PE-B400, PE-B405, 0.400
inch and VNA High Flex is part of our full line of RF components available for same-day shipping.
Our BNC male connector PE44294 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.79 in [45.47 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.058 lbs [26.31 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for LMR-400, PE-C400, PE-B400, PE-B405,
0.400 inch, VNA High Flex PE44294

PE44294 REV 1.1 1
