BNC Male Connector Crimp/Solder Attachment
for RG59 Plenum, RG59-P, RG302

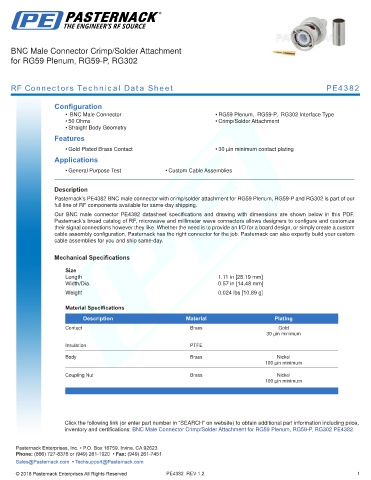

RF Connectors Technical Data Sheet PE4382

Configuration
• BNC Male Connector • RG59 Plenum, RG59-P, RG302 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4382 BNC male connector with crimp/solder attachment for RG59 Plenum, RG59-P and RG302 is part of our
full line of RF components available for same-day shipping.
Our BNC male connector PE4382 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.11 in [28.19 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.024 lbs [10.89 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for RG59 Plenum, RG59-P, RG302 PE4382 -
