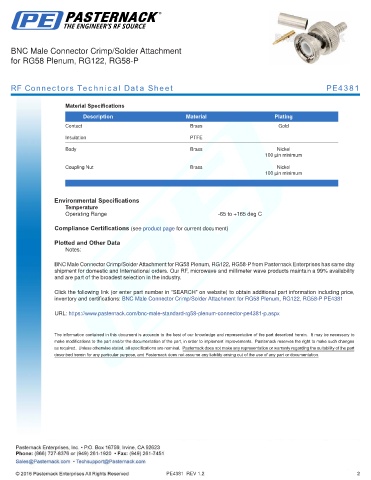

BNC Male Connector Crimp/Solder Attachment
for RG58 Plenum, RG122, RG58-P

RF Connectors Technical Data Sheet PE4381

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Male Connector Crimp/Solder Attachment for RG58 Plenum, RG122, RG58-P from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for RG58 Plenum, RG122, RG58-P PE4381

URL: https://www.pasternack.com/bnc-male-standard-rg58-plenum-connector-pe4381-p.aspx

PE4381 REV 1.2 2
