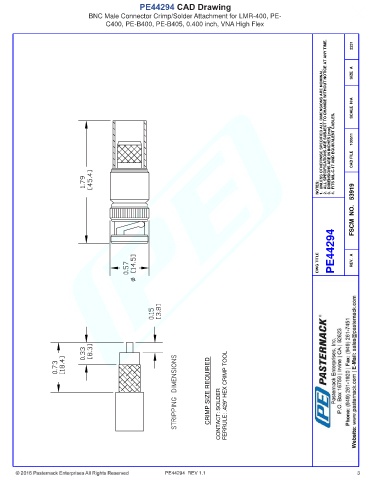

PE44294 CAD Drawing
BNC Male Connector Crimp/Solder Attachment for LMR-400, PE-
C400, PE-B400, PE-B405, 0.400 inch, VNA High Flex

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2231

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 100511 CAD FILE

NOTES:
FSCM NO. 53919

PE44294

DWG TITLE REV. A

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

PE44294 REV 1.1 3
