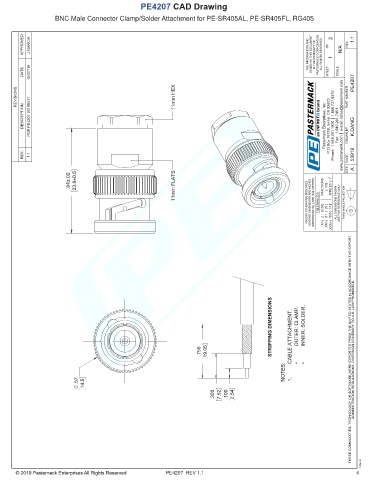

PE4207 CAD Drawing
BNC Male Connector Clamp/Solder Attachment for PE-SR405AL, PE-SR405FL, RG405

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 2 1 N/A REV 1.1

DATE 04/27/19 SHEET OF SCALE PE4207

REVISIONS 11mm HEX PART NUMBER

DESCRIPTION PCR PE4207 20190411 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. 1.1 CAGE 53919

SIZE A
.94±.02 23.8±0.5 11mm FLATS FRACTIONS ± 1/32 ANGLES ± 1°
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

STRIPPING DIMENSIONS OUTER: CLAMP. INNER: SOLDER.

CABLE ATTACHMENT:
.750 19.05 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
• •
NOTES:

.57 14.5 1.
.300 7.62 .100 2.54

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE4207 REV 1.1 4
